styles.hpp File Reference

Reusable style specifications for drawing commands. More...

#include "epaper/core/types.hpp"
#include "epaper/graphics/font.hpp"

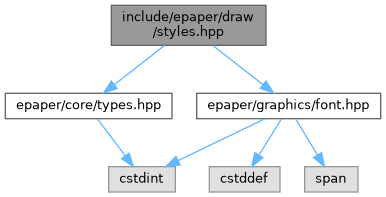

Include dependency graph for styles.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	epaper::LineStyleSpec
struct	epaper::ShapeStyleSpec
struct	epaper::TextStyleSpec

Namespaces
namespace	epaper

Detailed Description

Reusable style specifications for drawing commands.

Provides style bundle structs that encapsulate related visual properties. Styles can be defined once and applied to multiple commands via with_style() for consistent visual appearance.

Design Pattern:

Style Bundle Pattern
├─ Encapsulation: Group related visual properties (color, width, fill)
├─ Reusability: Define once, apply to many commands
├─ Consistency: Ensure related elements share visual style
└─ Maintainability: Change style in one place, affects all uses

Benefits:

• DRY Principle: Don't repeat color/width/fill across similar commands
• Theming: Define visual themes (e.g., "accent", "warning", "disabled")
• Readability: Named styles communicate intent (e.g., thick_border vs DotPixel::Pixel3x3)
• Compile-Time: All constexpr - zero runtime overhead

Usage Patterns:

// Define reusable styles
constexpr LineStyleSpec grid_lines{Color::Gray1, DotPixel::Pixel1x1, LineStyle::Dotted};
constexpr ShapeStyleSpec highlight{Color::Red, DotPixel::Pixel2x2, DrawFill::Empty};
constexpr TextStyleSpec header{&font20, Color::Black, Color::White};

// Apply to multiple commands
display.draw(display.line().from({0,0}).to({100,0}).with_style(grid_lines).build());
display.draw(display.line().from({0,10}).to({100,10}).with_style(grid_lines).build());
display.draw(display.rectangle().at({10,10}).size({80,60}).with_style(highlight).build());
display.draw(display.text("Title").at({10,10}).with_style(header).build());

Style Composition:

• Styles can be stored in config files/structs and loaded at runtime
• Individual properties can be overridden after with_style():

  display.line().from(a).to(b).with_style(grid_lines).color(Color::Red).build();
  //                                                   ^^^^^^^^^^^^^^^^^^^ override

See also

builders.hpp, LineBuilder::with_style(), RectangleBuilder::with_style()
